Parent Layer: Storm

Name: Stormwater Discharge Points

Display Field: DBID

Type: Feature Layer

Geometry Type: esriGeometryPoint

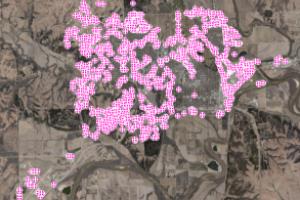

Description: Displays the approximate location of stormwater discharge points owned by the City of Manhattan, KS and other entities connected to the city’s system. For general information on city utilities contact the City of Manhattan, KS Public Works Department at (785) 587-2415. They can help put you in contact with the correct utility administrator.

Service Item Id: ad896d6e13f845d9b90eed3fcc6f1763

Copyright Text: MHK GIS and Public Works, RLCO GIS and Public Works, PTCO GIS and Public Works, Kansas State University

Default Visibility: true

MaxRecordCount: 2000

Supported Query Formats: JSON, geoJSON, PBF

Min Scale: 0.0

Max Scale: 0.0

Supports Advanced Queries: true

Supports Statistics: true

Has Labels: false

Can Modify Layer: true

Can Scale Symbols: false

Use Standardized Queries: true

Supports Datum Transformation: true

Extent:

XMin: 1686105.4410923868
YMin: 294257.4547303915
XMax: 1731143.8441256434
YMax: 327333.17171530426
Spatial Reference: 102677  (3419)  LatestVCSWkid(0)

Drawing Info:

Renderer:
Simple Renderer:
Symbol:
Label: N/A
Description: N/A
Transparency: 0
Labeling Info:

Advanced Query Capabilities:

Supports Statistics: true
Supports OrderBy: true
Supports Distinct: true
Supports Pagination: true
Supports TrueCurve: true
Supports Returning Query Extent: true
Supports Query With Distance: true
Supports Sql Expression: true
Supports Query With ResultType: false
Supports Returning Geometry Centroid: false
Supports Binning LOD: false
Supports Query With LOD Spatial Reference: false
Supports Percentile Statistics: true
Supports Having Clause: true
Supports Count Distinct: true
Supports Time Relation: true
Supports Sql Format: false
Supports Query Analytic: false
Supports Query With Current User: true

HasZ: true

HasM: false

Has Attachments: false

HTML Popup Type: esriServerHTMLPopupTypeAsHTMLText

Type ID Field: null

Fields:

• OBJECTID ( type: esriFieldTypeOID, alias: OBJECTID )
• Shape ( type: esriFieldTypeGeometry, alias: SHAPE )
• GlobalID ( type: esriFieldTypeGlobalID, alias: GlobalID, length: 38 )
• DBID ( type: esriFieldTypeInteger, alias: Database ID , Range: [200000, 249999] )
• ASSETID ( type: esriFieldTypeString, alias: Asset ID, length: 10 )
• DISPTTYPE ( type: esriFieldTypeString, alias: Discharge Point Type, length: 20 , Coded Values: [Unknown: Unknown] , [Outfall: Outfall] , [Emergency Overflow: Emergency Overflow] )
• GATETYPE ( type: esriFieldTypeString, alias: Gate Type, length: 10 , Coded Values: [Unknown: Unknown] , [Sluice: Sluice] , [Flap: Flap] , ...3 more... )
• OPENSHP ( type: esriFieldTypeString, alias: Opening Shape, length: 15 , Coded Values: [Unknown: Unknown] , [Circular: Circular] , [Rectangular: Rectangular] , ...4 more... )
• DIAMETER ( type: esriFieldTypeDouble, alias: Diameter )
• WIDTH ( type: esriFieldTypeDouble, alias: Width )
• INVERTELEV ( type: esriFieldTypeDouble, alias: Invert Elevation )
• PEAKDISCH ( type: esriFieldTypeString, alias: Peak Discharge, length: 10 )
• AVGDISCH ( type: esriFieldTypeString, alias: Average Discharge, length: 10 )
• NPDESOUTFALL ( type: esriFieldTypeString, alias: NPDES Outfall, length: 7 , Coded Values: [No: No] , [Yes: Yes] , [Unknown: Unknown] , ...1 more... )
• LEVEE ( type: esriFieldTypeString, alias: In Levee, length: 7 , Coded Values: [No: No] , [Yes: Yes] , [Unknown: Unknown] , ...1 more... )
• HEADWALL ( type: esriFieldTypeString, alias: Headwall, length: 7 , Coded Values: [No: No] , [Yes: Yes] , [Unknown: Unknown] , ...1 more... )
• ENERGDIS ( type: esriFieldTypeString, alias: Energy Dissipator, length: 7 , Coded Values: [No: No] , [Yes: Yes] , [Unknown: Unknown] , ...1 more... )
• LOCDESC ( type: esriFieldTypeString, alias: Location Description, length: 250 )
• PRJNUM ( type: esriFieldTypeString, alias: Project Number, length: 10 )
• APRJNUM ( type: esriFieldTypeString, alias: Alternate Project Number, length: 25 )
• YEARBUILT ( type: esriFieldTypeSmallInteger, alias: Year Built )
• YEARINSPECTED ( type: esriFieldTypeSmallInteger, alias: Year Inspected )
• STATUS ( type: esriFieldTypeString, alias: Status, length: 20 , Coded Values: [Unknown: Unknown] , [Operational: Operational] , [Built: Built] , ...6 more... )
• OWNEDBY ( type: esriFieldTypeString, alias: Owned By, length: 25 , Coded Values: [Unknown: Unknown] , [City of Manhattan: City of Manhattan] , [Riley County: Riley County] , ...11 more... )
• MAINTBY ( type: esriFieldTypeString, alias: Maintained By, length: 25 , Coded Values: [Unknown: Unknown] , [MHK Sewer Maintenance: MHK Sewer Maintenance] , [MHK Water Distribution: MHK Water Distribution] , ...19 more... )
• ROTATION ( type: esriFieldTypeDouble, alias: Rotation )
• OLDID ( type: esriFieldTypeString, alias: Old ID, length: 10 )
• CREATOR ( type: esriFieldTypeString, alias: Created By, length: 50 )
• CREATED ( type: esriFieldTypeDate, alias: Created On, length: 8 )
• LASTEDITOR ( type: esriFieldTypeString, alias: Last Edited By, length: 50 )
• LASTEDITED ( type: esriFieldTypeDate, alias: Last Edited On, length: 8 )
• LucityAutoID ( type: esriFieldTypeInteger, alias: Link to Lucity )

Supported Operations:   Query   Query Attachments   Query Analytic   Generate Renderer   Return Updates
