Parent Layer: Storm (stagingGIS - Default)

Name: Stormwater Discharge Points

Display Field: DBID

Type: Feature Layer

Geometry Type: esriGeometryPoint

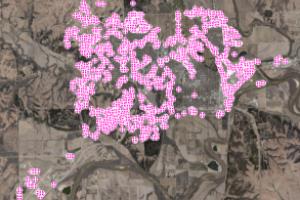

Description: <DIV STYLE="text-align:Left;font-size:12pt"><DIV><DIV><P><SPAN>Displays the approximate location of stormwater discharge points owned by the City of Manhattan, KS and other entities connected to the city’s system.</SPAN></P></DIV></DIV></DIV>

Service Item Id: 8fe49bcea3104866b7de28a3d7556fcd

Copyright Text: MHK GIS and Public Works, RLCO GIS and Public Works, PTCO GIS and Public Works, Kansas State University

Default Visibility: true

MaxRecordCount: 2000

Supported Query Formats: JSON, geoJSON, PBF

Min Scale: 0.0

Max Scale: 0.0

Supports Advanced Queries: true

Supports Statistics: true

Has Labels: false

Can Modify Layer: true

Can Scale Symbols: false

Use Standardized Queries: true

Supports Datum Transformation: true

Extent:

XMin: 1686105.4410923868
YMin: 294257.4547303915
XMax: 1731143.8441256434
YMax: 327333.17171530426
Spatial Reference: 102677  (3419)  VCSWkid(105703)  LatestVCSWkid(6360)

Drawing Info:

Renderer:
Simple Renderer:
Symbol:
Label: N/A
Description: N/A
Transparency: 0
Labeling Info:

Advanced Query Capabilities:

Supports Statistics: true
Supports OrderBy: true
Supports Distinct: true
Supports Pagination: true
Supports TrueCurve: true
Supports Returning Query Extent: true
Supports Query With Distance: true
Supports Sql Expression: true
Supports Query With ResultType: false
Supports Returning Geometry Centroid: false
Supports Binning LOD: false
Supports Query With LOD Spatial Reference: false
Supports Percentile Statistics: true
Supports Having Clause: true
Supports Count Distinct: true
Supports Time Relation: true
Supports Sql Format: false
Supports Query Analytic: false
Supports Query With Current User: true

HasZ: true

HasM: false

Has Attachments: false

HTML Popup Type: esriServerHTMLPopupTypeAsHTMLText

Type ID Field: null

Fields:

• OBJECTID ( type: esriFieldTypeOID, alias: OBJECTID )
• Shape ( type: esriFieldTypeGeometry, alias: SHAPE )
• GlobalID ( type: esriFieldTypeGlobalID, alias: GlobalID, length: 38 )
• DBID ( type: esriFieldTypeInteger, alias: Database ID , Range: [200000, 249999] )
• ASSETID ( type: esriFieldTypeString, alias: Asset ID, length: 10 )
• DISPTTYPE ( type: esriFieldTypeString, alias: Discharge Point Type, length: 20 , Coded Values: [Unknown: Unknown] , [Outfall: Outfall] , [Emergency Overflow: Emergency Overflow] )
• GATETYPE ( type: esriFieldTypeString, alias: Gate Type, length: 10 , Coded Values: [Unknown: Unknown] , [Sluice: Sluice] , [Flap: Flap] , ...3 more... )
• OPENSHP ( type: esriFieldTypeString, alias: Opening Shape, length: 15 , Coded Values: [Unknown: Unknown] , [Circular: Circular] , [Rectangular: Rectangular] , ...4 more... )
• DIAMETER ( type: esriFieldTypeDouble, alias: Diameter )
• WIDTH ( type: esriFieldTypeDouble, alias: Width )
• INVERTELEV ( type: esriFieldTypeDouble, alias: Invert Elevation )
• PEAKDISCH ( type: esriFieldTypeString, alias: Peak Discharge, length: 10 )
• AVGDISCH ( type: esriFieldTypeString, alias: Average Discharge, length: 10 )
• NPDESOUTFALL ( type: esriFieldTypeString, alias: NPDES Outfall, length: 7 , Coded Values: [No: No] , [Yes: Yes] , [Unknown: Unknown] , ...1 more... )
• LEVEE ( type: esriFieldTypeString, alias: In Levee, length: 7 , Coded Values: [No: No] , [Yes: Yes] , [Unknown: Unknown] , ...1 more... )
• HEADWALL ( type: esriFieldTypeString, alias: Headwall, length: 7 , Coded Values: [No: No] , [Yes: Yes] , [Unknown: Unknown] , ...1 more... )
• ENERGDIS ( type: esriFieldTypeString, alias: Energy Dissipator, length: 7 , Coded Values: [No: No] , [Yes: Yes] , [Unknown: Unknown] , ...1 more... )
• LOCDESC ( type: esriFieldTypeString, alias: Location Description, length: 250 )
• PRJNUM ( type: esriFieldTypeString, alias: Project Number, length: 10 )
• APRJNUM ( type: esriFieldTypeString, alias: Alternate Project Number, length: 25 )
• YEARBUILT ( type: esriFieldTypeSmallInteger, alias: Year Built )
• STATUS ( type: esriFieldTypeString, alias: Status, length: 20 , Coded Values: [Unknown: Unknown] , [Operational: Operational] , [Built: Built] , ...6 more... )
• OWNEDBY ( type: esriFieldTypeString, alias: Owned By, length: 25 , Coded Values: [Unknown: Unknown] , [City of Manhattan: City of Manhattan] , [Riley County: Riley County] , ...11 more... )
• MAINTBY ( type: esriFieldTypeString, alias: Maintained By, length: 25 , Coded Values: [Unknown: Unknown] , [MHK Sewer Maintenance: MHK Sewer Maintenance] , [MHK Water Distribution: MHK Water Distribution] , ...19 more... )
• ROTATION ( type: esriFieldTypeDouble, alias: Rotation )
• OLDID ( type: esriFieldTypeString, alias: Old ID, length: 10 )
• CREATOR ( type: esriFieldTypeString, alias: Created By, length: 50 )
• CREATED ( type: esriFieldTypeDate, alias: Created On, length: 8 )
• LASTEDITOR ( type: esriFieldTypeString, alias: Last Edited By, length: 50 )
• LASTEDITED ( type: esriFieldTypeDate, alias: Last Edited On, length: 8 )
• LucityAutoID ( type: esriFieldTypeInteger, alias: Link to Lucity )
• YEARINSPECTED ( type: esriFieldTypeSmallInteger, alias: YEARINSPECTED )
