Parent Layer: Water

Name: Water Pipes

Display Field: DBID

Type: Feature Layer

Geometry Type: esriGeometryPolyline

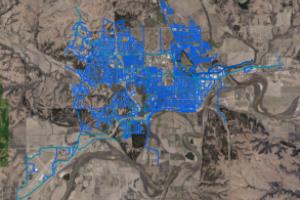

Description: <DIV STYLE="text-align:Left;font-size:12pt"><P STYLE="margin:0 0 0 0;"><SPAN>Displays the approximate location of water mains owned by the City of Manhattan, KS. For general information on city utilities contact the City of Manhattan, KS Public Works Department at (785) 587-2415. They can help put you in contact with the correct utility administrator.</SPAN></P></DIV>

Service Item Id: a1407daf207f4db8943edd83b40f986b

Copyright Text: MHK GIS and Public Works

Default Visibility: true

MaxRecordCount: 2000

Supported Query Formats: JSON, geoJSON, PBF

Min Scale: 0.0

Max Scale: 0.0

Supports Advanced Queries: true

Supports Statistics: true

Has Labels: false

Can Modify Layer: true

Can Scale Symbols: false

Use Standardized Queries: true

Supports Datum Transformation: true

Extent:

XMin: 1684086.9897487164
YMin: 291028.87851040065
XMax: 1741497.411673054
YMax: 337084.9816079736
Spatial Reference: 102677  (3419)  LatestVCSWkid(0)

Drawing Info:

Renderer:
Unique Value Renderer:
Field 1: PIPETYPE
Field 2: N/A
Field 3: N/A
Field Delimiter: ,
Default Symbol:
N/A
Default Label: N/A
UniqueValueInfos:
• Value: Unknown
  Label: Unknown
  Description: N/A
  Symbol:
  Style: esriSLSSolid
  Color: [215, 252, 224, 255]
  Width: 1
• Value: Raw Water
  Label: Raw Water
  Description: N/A
  Symbol:
  Style: esriSLSSolid
  Color: [0, 77, 168, 255]
  Width: 3
• Value: Transmission Main
  Label: Transmission Main
  Description: N/A
  Symbol:
  Style: esriSLSSolid
  Color: [0, 132, 168, 255]
  Width: 2
• Value: Distribution Main
  Label: Distribution Main
  Description: N/A
  Symbol:
  Style: esriSLSSolid
  Color: [0, 92, 230, 255]
  Width: 2
• Value: Domestic Service
  Label: Domestic Service
  Description: N/A
  Symbol:
  Style: esriSLSSolid
  Color: [46, 82, 133, 255]
  Width: 1
• Value: Commercial Service
  Label: Commercial Service
  Description: N/A
  Symbol:
  Style: esriSLSSolid
  Color: [252, 195, 179, 255]
  Width: 1
• Value: Irrigation Service
  Label: Irrigation Service
  Description: N/A
  Symbol:
  Style: esriSLSSolid
  Color: [190, 255, 232, 255]
  Width: 1
• Value: Fire Service
  Label: Fire Service
  Description: N/A
  Symbol:
  Style: esriSLSSolid
  Color: [255, 85, 0, 255]
  Width: 2
• Value: Hydrant Setting
  Label: Hydrant Setting
  Description: N/A
  Symbol:
  Style: esriSLSSolid
  Color: [190, 232, 255, 255]
  Width: 2
• Value: Irrigation Line
  Label: Irrigation Line
  Description: N/A
  Symbol:
  Style: esriSLSSolid
  Color: [190, 255, 232, 255]
  Width: 1
• Value: Rural Water
  Label: Rural Water
  Description: N/A
  Symbol:
  Style: esriSLSSolid
  Color: [215, 158, 158, 255]
  Width: 1
Transparency: 0
Labeling Info:

Advanced Query Capabilities:

Supports Statistics: true
Supports OrderBy: true
Supports Distinct: true
Supports Pagination: true
Supports TrueCurve: true
Supports Returning Query Extent: true
Supports Query With Distance: true
Supports Sql Expression: true
Supports Query With ResultType: false
Supports Returning Geometry Centroid: false
Supports Binning LOD: false
Supports Query With LOD Spatial Reference: false
Supports Percentile Statistics: true
Supports Having Clause: true
Supports Count Distinct: true
Supports Time Relation: true
Supports Sql Format: false
Supports Query Analytic: false
Supports Query With Current User: true

HasZ: true

HasM: false

Has Attachments: false

HTML Popup Type: esriServerHTMLPopupTypeAsHTMLText

Type ID Field: null

Fields:

• OBJECTID ( type: esriFieldTypeOID, alias: OBJECTID )
• Shape ( type: esriFieldTypeGeometry, alias: SHAPE )
• GlobalID ( type: esriFieldTypeGlobalID, alias: GlobalID, length: 38 )
• DBID ( type: esriFieldTypeInteger, alias: Database ID , Range: [0, 99999] )
• ASSETID ( type: esriFieldTypeString, alias: Asset ID, length: 21 )
• PIPETYPE ( type: esriFieldTypeString, alias: Pipe Type, length: 20 , Coded Values: [Unknown: Unknown] , [Raw Water: Raw Water] , [Transmission Main: Transmission Main] , ...8 more... )
• PIPEMAT ( type: esriFieldTypeString, alias: Pipe Material, length: 30 , Coded Values: [Unknown: Unknown] , [ABS Plastic: ABS Plastic] , [Asbestos Cement: Asbestos Cement] , ...31 more... )
• PIPEDIAM ( type: esriFieldTypeDouble, alias: Pipe Diameter )
• PIPELEN ( type: esriFieldTypeDouble, alias: Pipe Length )
• FROMELEV ( type: esriFieldTypeDouble, alias: From Elevation )
• TOELEV ( type: esriFieldTypeDouble, alias: To Elevation )
• FROMNODE ( type: esriFieldTypeString, alias: From Node, length: 10 )
• TONODE ( type: esriFieldTypeString, alias: To Node, length: 10 )
• INSTALLTYPE ( type: esriFieldTypeString, alias: Install Type, length: 20 , Coded Values: [Unknown: Unknown] , [Aerial: Aerial] , [Bore: Bore] , ...3 more... )
• PRJNUM ( type: esriFieldTypeString, alias: Project Number, length: 10 )
• APRJNUM ( type: esriFieldTypeString, alias: Alternate Project Number, length: 25 )
• YEARBUILT ( type: esriFieldTypeSmallInteger, alias: Year Built )
• STATUS ( type: esriFieldTypeString, alias: Status, length: 20 , Coded Values: [Unknown: Unknown] , [Operational: Operational] , [Built: Built] , ...6 more... )
• OWNEDBY ( type: esriFieldTypeString, alias: Owned By, length: 25 , Coded Values: [Unknown: Unknown] , [City of Manhattan: City of Manhattan] , [Riley County: Riley County] , ...11 more... )
• MAINTBY ( type: esriFieldTypeString, alias: Maintained By, length: 25 , Coded Values: [Unknown: Unknown] , [MHK Sewer Maintenance: MHK Sewer Maintenance] , [MHK Water Distribution: MHK Water Distribution] , ...19 more... )
• PRESSUREZONE ( type: esriFieldTypeString, alias: Pressure Zone, length: 20 , Coded Values: [High: High] , [Low: Low] , [Northwest: Northwest] , ...4 more... )
• OLDID ( type: esriFieldTypeString, alias: Old ID, length: 21 )
• CREATOR ( type: esriFieldTypeString, alias: Created By, length: 50 )
• CREATED ( type: esriFieldTypeDate, alias: Created On, length: 8 )
• LASTEDITOR ( type: esriFieldTypeString, alias: Last Edited By, length: 50 )
• LASTEDITED ( type: esriFieldTypeDate, alias: Last Edited On, length: 8 )
• LucityAutoID ( type: esriFieldTypeInteger, alias: Link to Lucity )
• Shape.STLength() ( type: esriFieldTypeDouble, alias: Shape.STLength() )

Supported Operations:   Query   Query Attachments   Query Analytic   Generate Renderer   Return Updates
